Hilux Fotoğrafları..

[yanikog]

Ynt: Hilux Fotoğrafları..

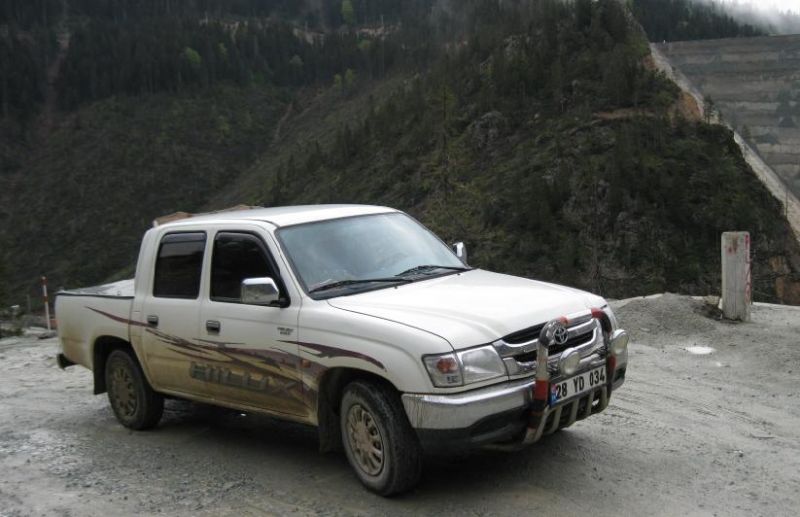

öncelikle herkese selamlar.abilerim hiluxlar süper yaa buda benden olsun benim hilux[attachment=1]



[taylan demirdöven]

Ynt: Hilux Fotoğrafları..

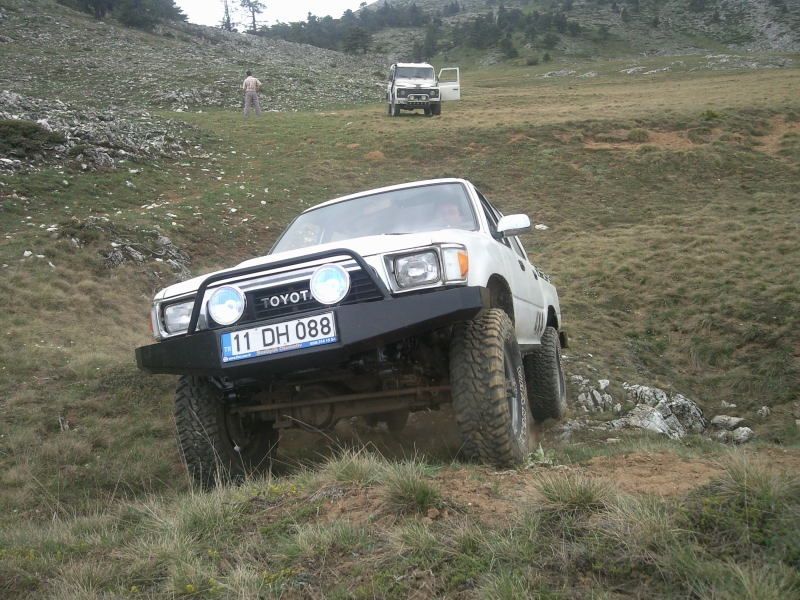

2 tanede benden



[endüstri]

Ynt: Hilux Fotoğrafları..

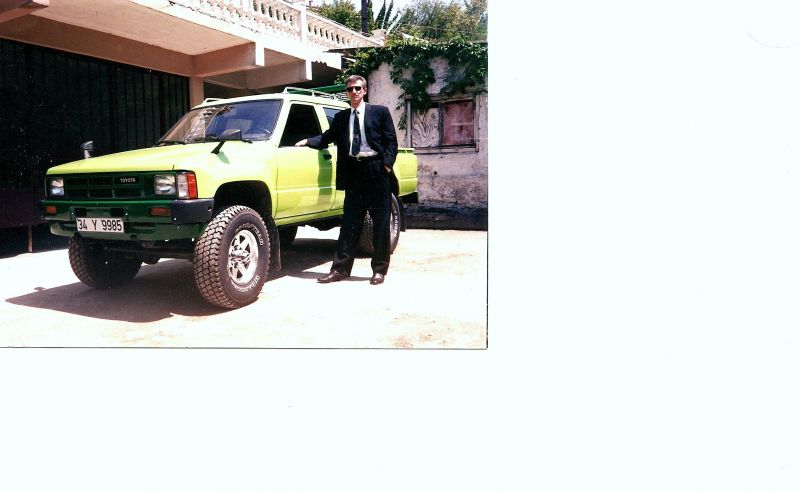

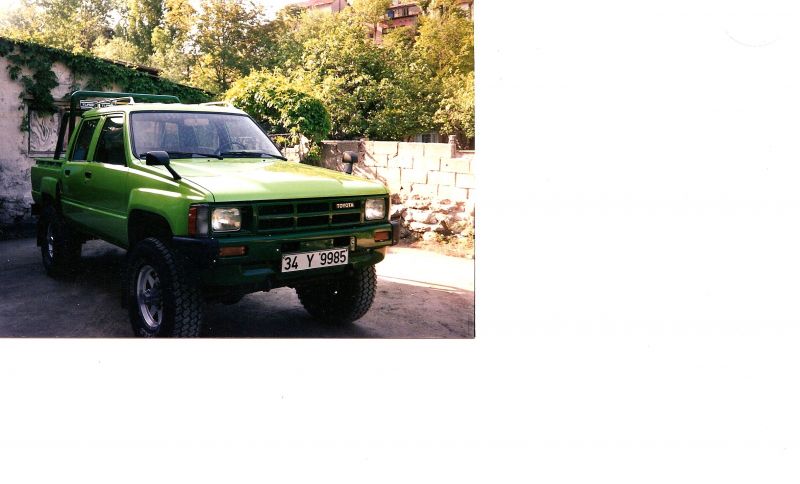

buda benim ki.



[taylan demirdöven]

Ynt: Hilux Fotoğrafları..

bende kısmet olrsababamınki gibi bi hilux yapıcam ilerde



[çağlar]

Ynt: Hilux Fotoğrafları..

bende kısmet olrsababamınki gibi bi hilux yapıcam ilerde

güzel araçmış , en verimli kasalardan ..



[taylan demirdöven]

Ynt: Hilux Fotoğrafları..

teşekkrler teletaştan alıp toplamıştı babam sonra biri geldi zorla aldı gitti



[Ertan Erkişi]

Ynt: Hilux Fotoğrafları..

Nacizane bir paylaşımda benden olsun
3'ü bir arada



[aslanaybars]

Ynt: Hilux Fotoğrafları..

mükemmel harkulade enfes bi foto....tesekkürler ertan bey arada gönderin böyle nacizane ...3 tane dag efsanesi......



[fissek]

Ynt: Hilux Fotoğrafları..

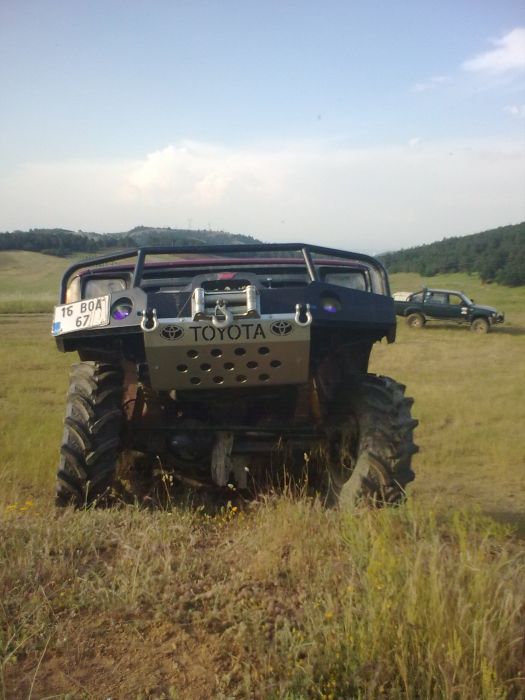

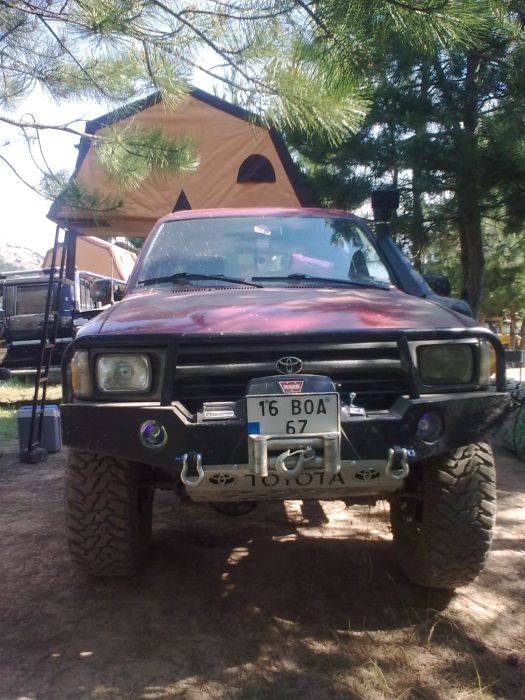

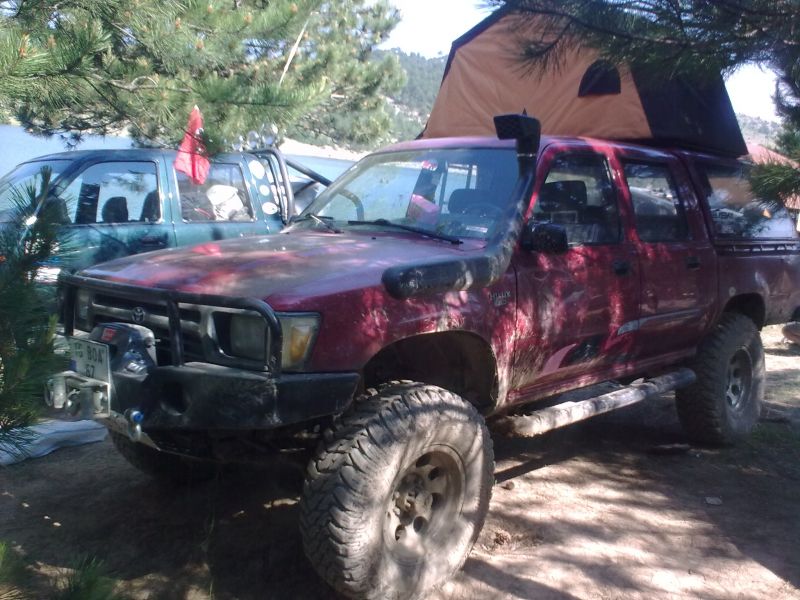

Buda bizim traktör ;D
[attachment=1]
[attachment=2]
[attachment=3]
[attachment=4]



[fissek]

Ynt: Hilux Fotoğrafları..

[attachment=1]
[attachment=2]



[MUDANYALI]

Ynt: Hilux Fotoğrafları..

Yakışır Recep Abime..

Bildiğim çok maharetli bir pullukçu var abi..valla tek eksiği o gibi.. ;D ;D

Allah tabanını düz bastırtsın,mutlu günlerde kullanasın..

saygılarımla



[mergen]

Ynt: Hilux Fotoğrafları..



[mergen]

Ynt: Hilux Fotoğrafları..



[mergen]

Ynt: Hilux Fotoğrafları..

www.arctictrucks.com

SPECIFICATIONS

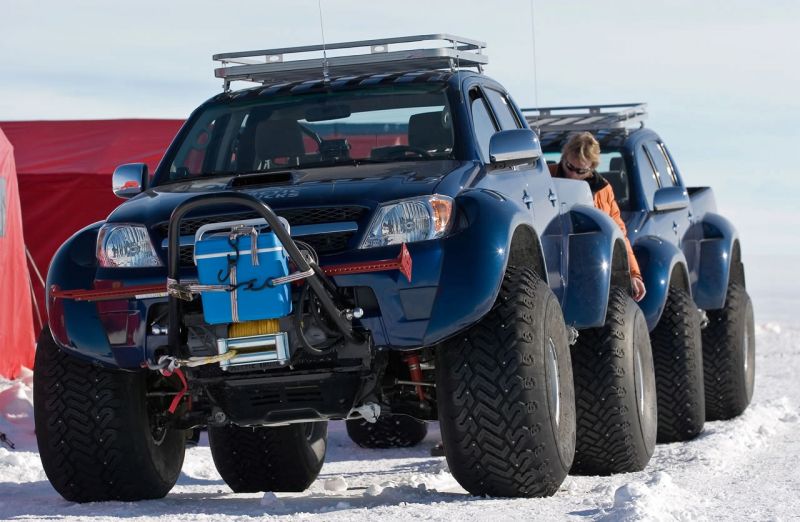

Arctic Trucks Hilux for the South Pole Race 2008/2009

A standard Toyota Hilux Double Cab 3.0-litre with Automatic Transmission



ENGINE

• Auxiliary heater on coolant added

• Original battery replaced by two heavy duty batteries

• Air intake modified

• Special exhaust system fitted



TRANSMISSION AND LOW GEAR

• Original 4 gear automatic transmission

• Original low gear modified by Arctic Trucks into crawler gear

• Additional low gear from KZJ 95 added

• Drive shafts modified



DIFFERENTIAL

• Front: Arctic Trucks 4.88:1 8.2“ ring and pinion installed

• Rear: Bigger 9.5“ rear differential installed with 4.88:1

• 100% differential air lockers fitted front and rear



TYRES AND WHEELS

• Dick Cepec FC 44x18.5 – 15 inch tires fitted

• Steel wheels 15“x16“



FUEL SYSTEM

• Fuel heater added

• Two additional fuel tanks with 210 litre capacity added

• Total capacity 290 litres



SUSPENSION

• Front: suspension moved forward 4 cm and down 5 cm. Standard coil springs and shocks replaced by heavy duty Arctic Trucks springs and heavy duty Koni shocks

• Rear: suspension moved back by 16 cm. Standard leaf springs replaced by modified Tundra leaf springs. Heavy duty stopper and rear track bar added

• Reinforce knuckles installed



BODY

• 6 cm body lift

• Relocated body mounts

• Extensive body trimming front and rear

• Large fender flairs fitted.



NAVIGATION AND COMMUNICATION

• VHF and HF radios

• Iridium phone

• GPS and laptops



OTHER

• African Outback roof rack fitted

• Crevasses protection bar

• Roll cage installed inside cabin and on rear deck

• Rear towing hitch welded on frame

• Winch/towing bar fitted in front

• Additional skid plates made from 12mm PE500 plastic fitted

• Two electrical air pumps installed and air conditioning pump modified for pumping air

• Auxiliary electrical system for various equipment and film crew

• Comeup 9500I winch with Dinex rope

• Power outtake for winch front and rear

• Snow melting system fitted, using engine coolant

• New sided steps fitted, can be used as push bar between vehicles and as a fixture for a crane to lift oil barrels

• Fixtures on rear deck for fuel barrels and various equipments added

• High lift jack, shovel, craw bar

• Note: For critical parts a steal with high tolerance to low temperature was used:



[mergen]

Ynt: Hilux Fotoğrafları..



[mergen]

Ynt: Hilux Fotoğrafları..
